The Robin Kit provides everything you need to build an experimental platform for your projects—just screw the parts together, solder a few cables, and you’re set. Tools are included, but bring your own soldering iron. Once built, connect the flight computer to a PC or laptop for calibration. Our user manual guides the assembly, while the Ardupilot website covers calibration.

Frame empty weight: 2075g (±50g) ;

Built weight without batteries: 3385g (±50g);

Maximum take-off weight: 11 000g;

Maximum payload (including batteries): 7500g

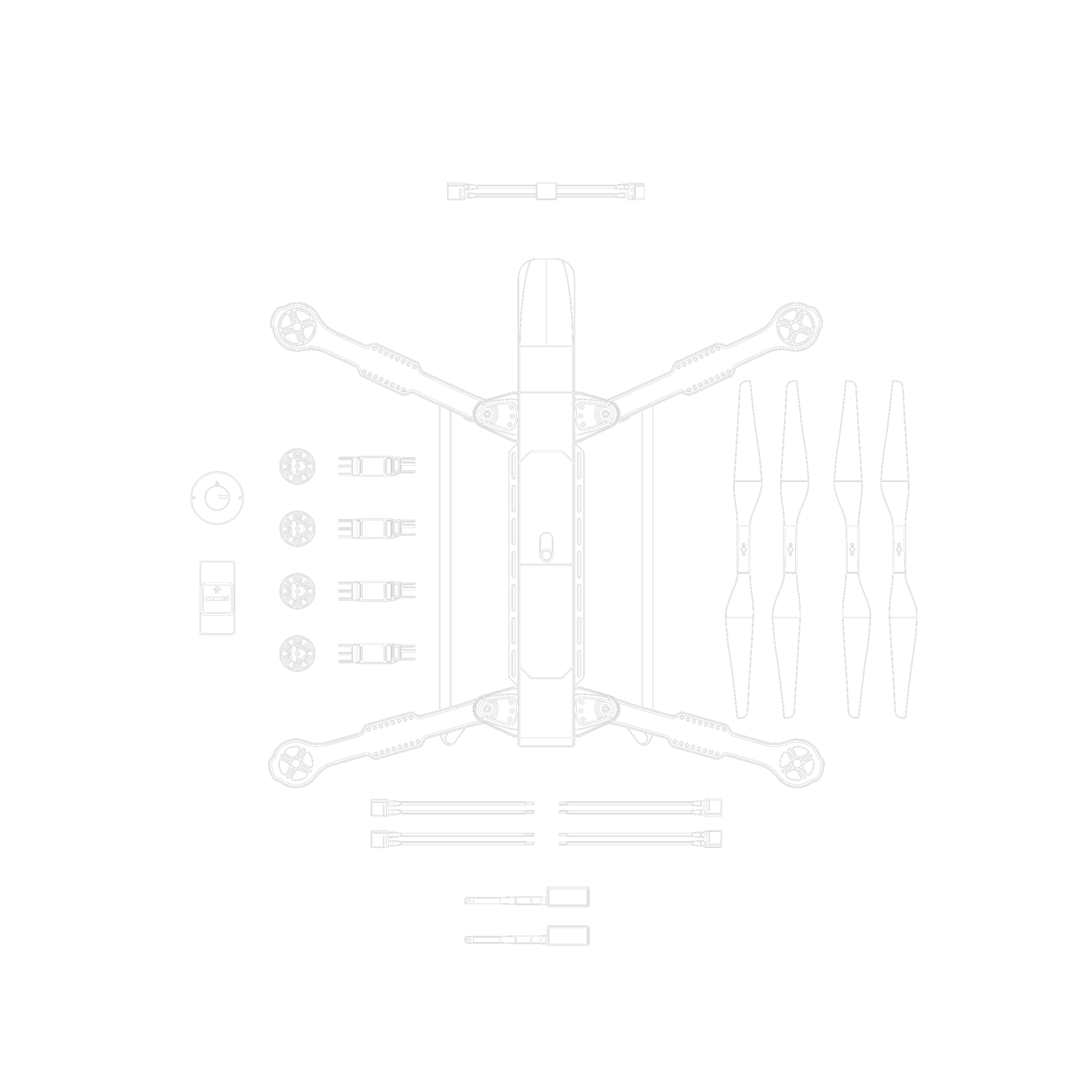

Physical content:

• Robin carbon fiber reinforced, foldable frame

• 4x T-Motor MN4014 brushless motors

• 4x T-Motor AIR40A speed controllers

• 4× 17 inch polymer propellers (2x CV and 2 CCV)

• 1x Pixhawk 2 flight computer

• 1x HERE GPS unit

• 1x Battery power module

• 4x Battery connector cables

• 1x Payload adapter

• 2× 433 Mhz Telemetry module

• Cube ID
