ROBIN
OPTIONS
DIY Frame
The DIY frame arrives with a fully assembled, foldable fuselage module designed for effortless setup. Please note that this package does not include motors, propellers, or any electronics, granting you freedom when selecting components that match your specific requirements. The frame is securely housed in a sturdy cardboard box, complete with impact and moisture protection to ensure safe delivery and storage.
Drone Kit
The kit contains a fully assembled, foldable fuselage module, along with motors, propellers, and basic electronics, which are provided but remain unassembled. Each component is neatly packed in a sturdy cardboard box with impact and moisture protection, ensuring safe transport and secure storage. This user-friendly bundle simplifies your drone-building experience, while offering ample flexibility to personalize your project.
Plans
Download the CAD files for the Robin drone and build your own UAV at home. Its design allows assembly without advanced building experience. Simply have the structural parts cut from 2 mm or 3 mm aluminum or carbon fiber reinforced composite sheets. Non-structural components can be 3D printed from ABS, ASA, or LW-PLA. Finally, bond everything together with super glue or a two-part epoxy adhesive for a sturdy, reliably build.
OUTLINES

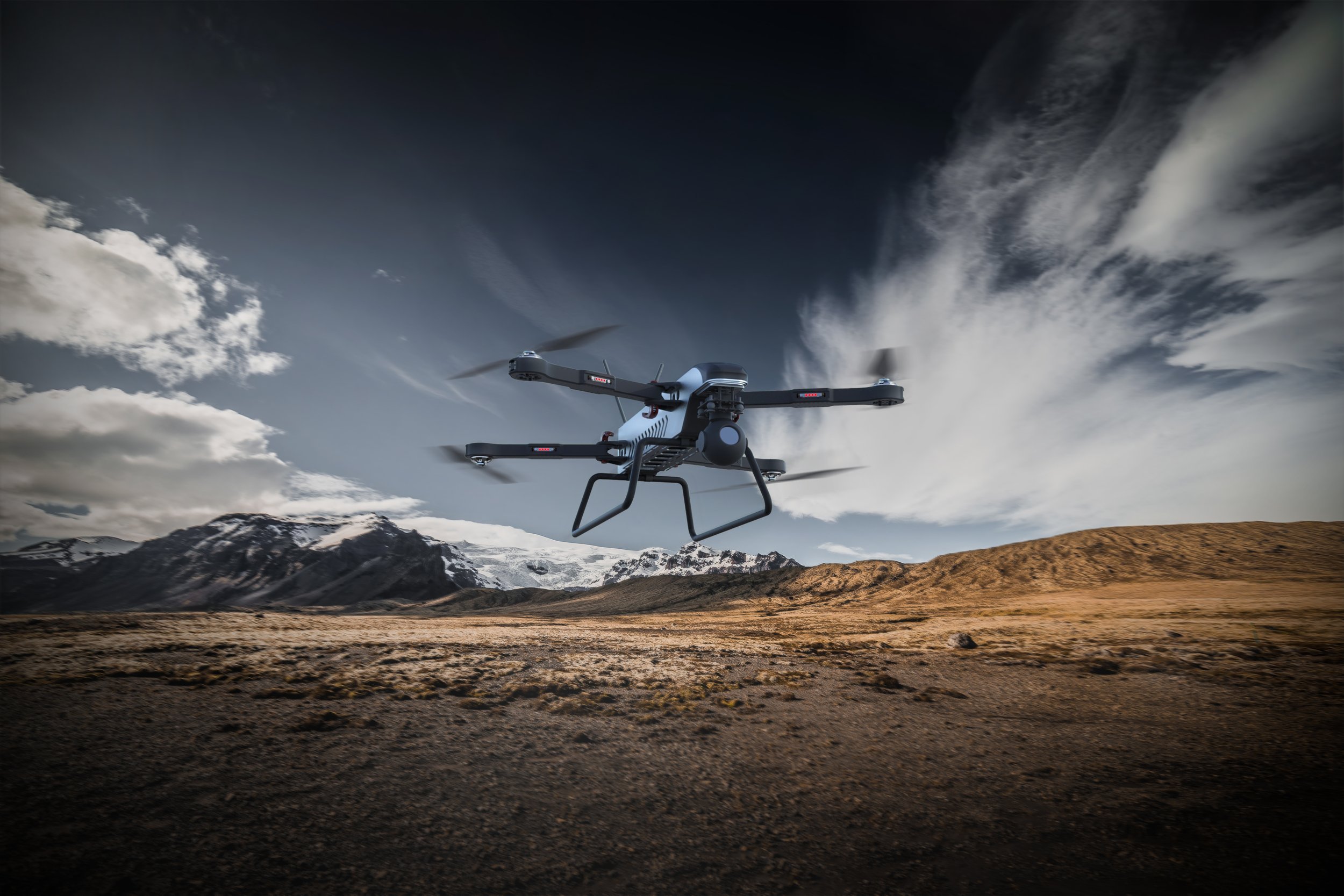

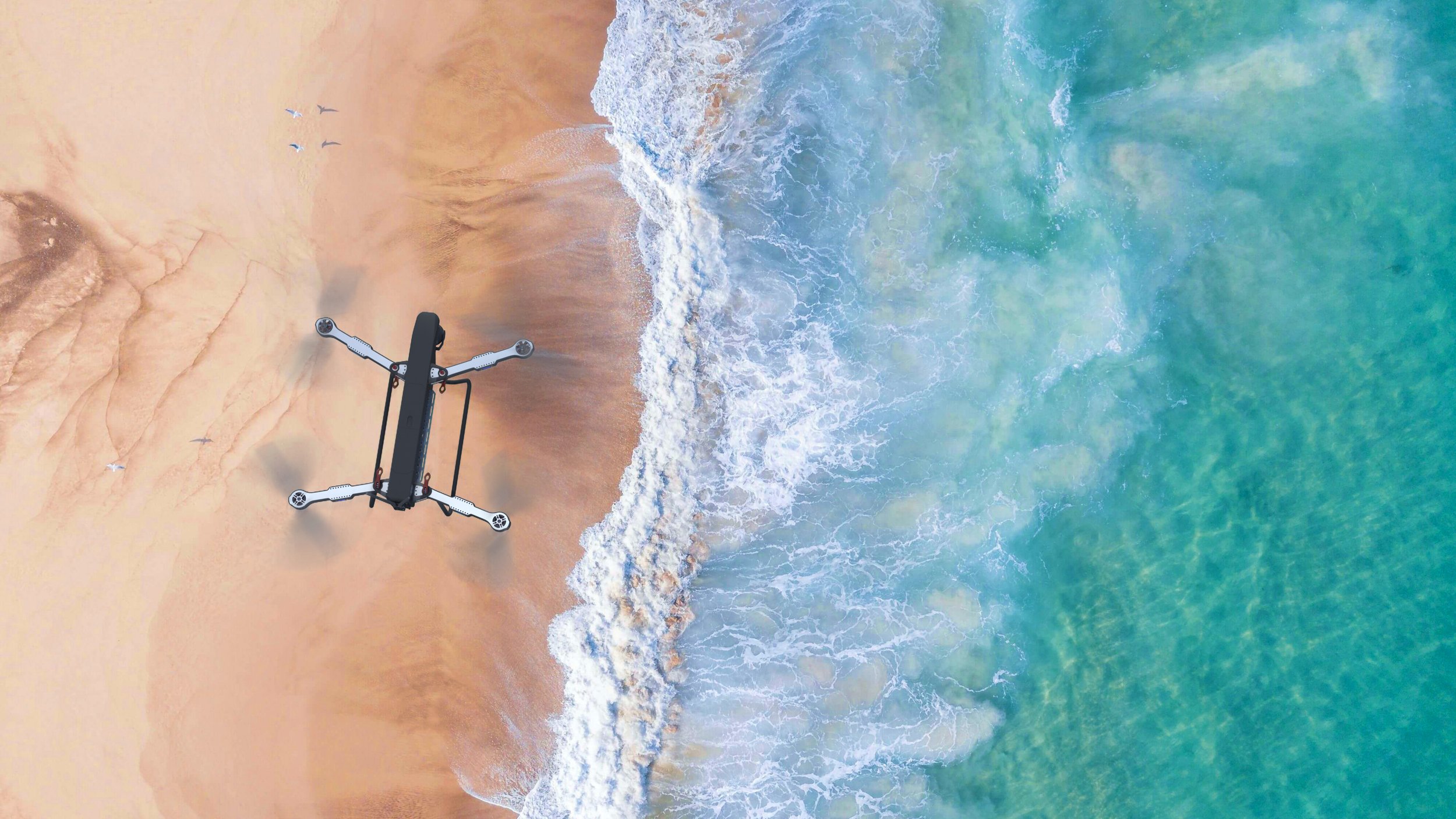

The Robin frame is an ideal choice for developers and hobbyists seeking a simple yet robust, foldable quadcopter solution. Primarily constructed from a durable aluminum alloy or carbon fiber reinforced composite, Robin is built to withstand rigorous use while remaining compact, easy to carry, and quick to launch. The frame itself supports a maximum of 15 kg structural take-off weight but is designed for an operational limit of 11 kg—including a useful load capacity of up to 7 kg, depending on the components you choose.
DETAILS
Camera
Adapter
The universal adapter supports a range of cameras and sensors. Dimensions are as follow:
- 4x M3 (68 x 23 mm) for TAROT camera mounting -
- 4x M3 (60 x 22.5 mm) for SIYI camera mounting -
- 4x M3 (from 24 x 24 mm to 46 x 46 mm) universal -
Motor
Mount
Motor mounts are perfectly compatible with T-motors navigator series up to MN4014 but it is able to support a vide range of BLDC motors:
- Maximum motor diameter: 47 mm -
- 4x M3 (from 20 x 20 mm to 40 x 40 mm) universal -
Stack
Mount
The stack mount supports a range of flight computers and power distributor boards. Dimensions are as follow:
- 4x M2.5 (85 x 34 mm) for PIXHAWK -
- 4x M2.5 (from 24 x 24 mm to 45 x 45 mm) flight computer
- 4x M2.5 (from 24 x 24 mm to 45 x 45 mm) power distribution
PERFORMANCE
Robin offers versatile power options, too. You can house two 6S (7000 mAh) batteries inside the hull for a clean, enclosed setup, or opt for four batteries in an FPV-style arrangement. With lighter payloads, this extended configuration can deliver flight times of up to 48 minutes.
DIMENSIONS
Ideal packing size
- Frame: 800 x 300x 150 mm -
- Kit: 800 x 300x 250 mm -
CUSTOMIZATION

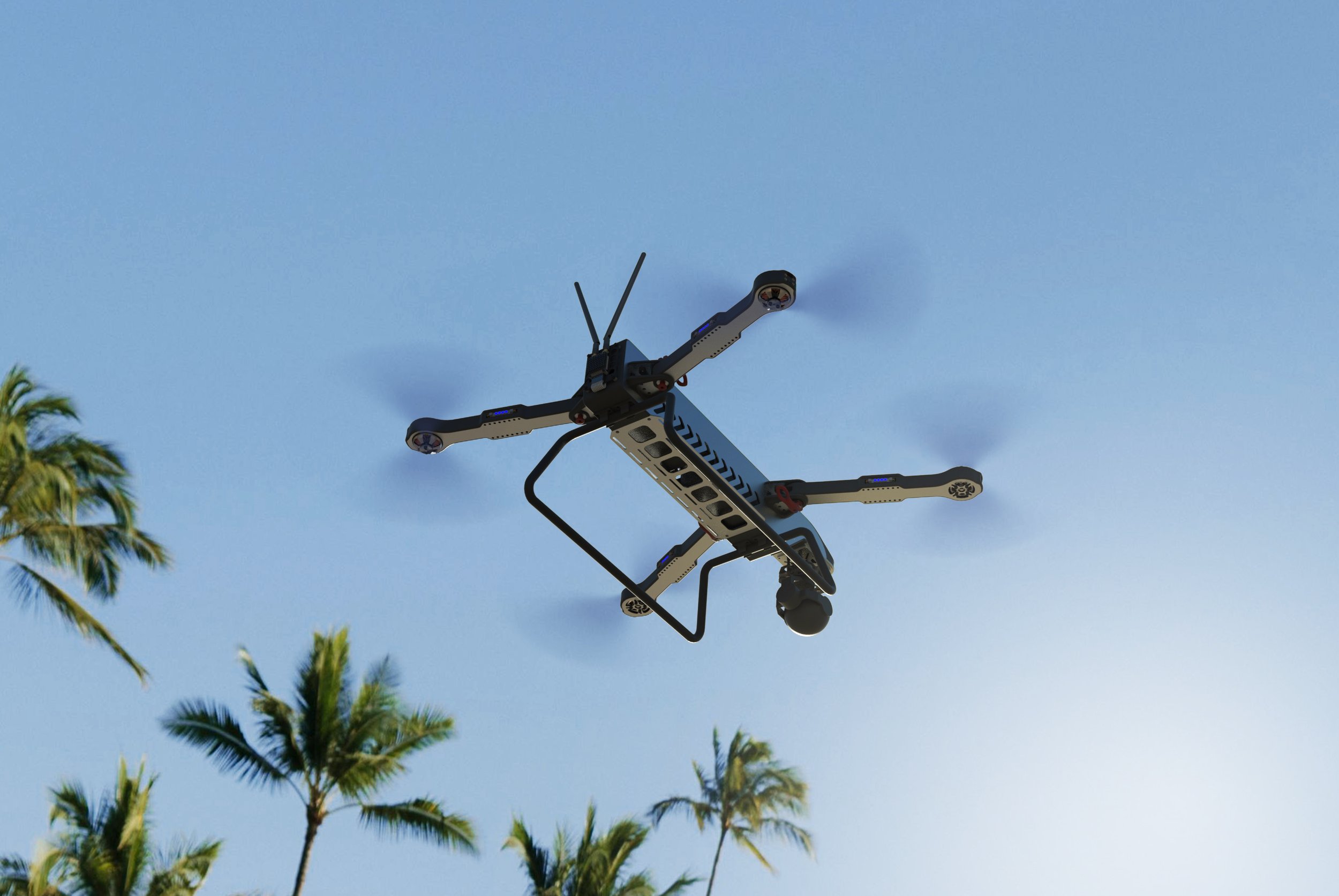

Rounding out its flexibility, Robin features a customizable front mount for sensors (e.g., 4K camera, zoom camera, FLIR, LIDAR), ensuring enhanced navigation and situational awareness. Whether you’re focused on mapping, surveillance, or aerial photography, Robin provides a dependable, cost-effective platform for your drone-building projects.
